Boasting 2x UART, 1x RS232, and 1x RS485 ports, this high-reliability serial port converter is designed to facilitate the conversion of serial ports for high-performance operations. With miniaturized size, it adheres to rigorous reliability.
3 g
On wire
Small size
Serial converter
-40 to 85º

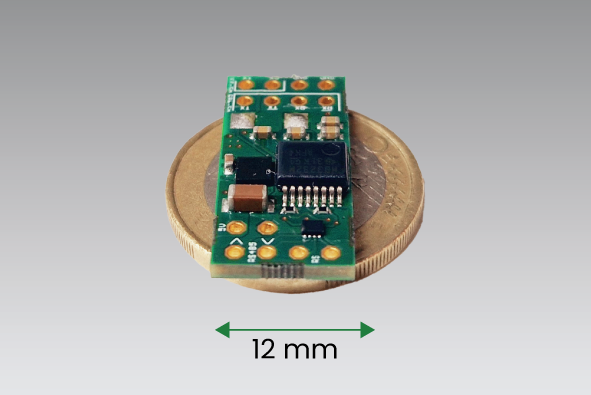

Since Veronte Serial is a small PCB, electrical connections are made by soldering cables in the PCB. Once cables are welded, the device can be wrapped in a shrinking tube.

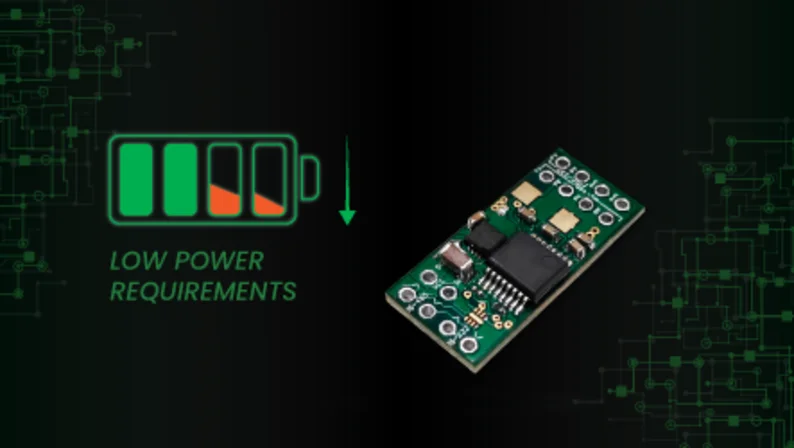

Power supply of 5 V (with a margin range from 2.3 to 6.5 V). 2A maximum.
Its light weight allows it to be installed almost anywhere on the aircraft.

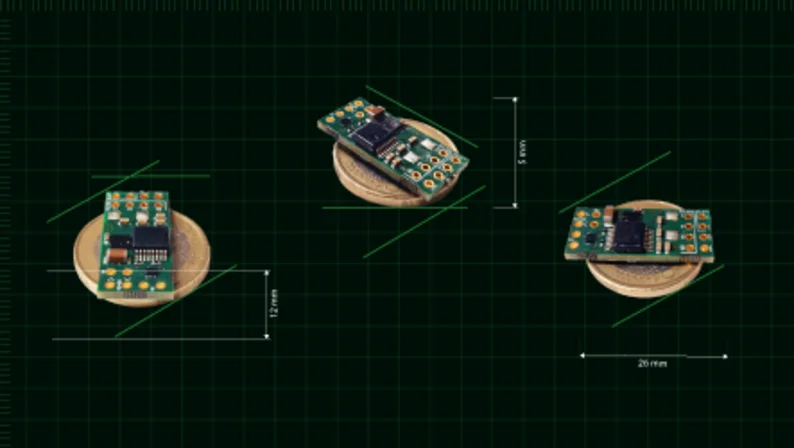

Serial fits seamlessly in wires or heat-shrinking tubes, thanks to its small size.

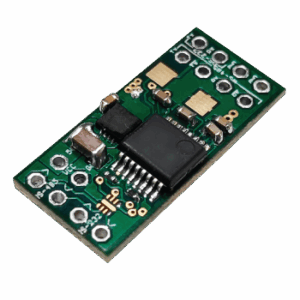

Veronte Avionics Serial by Embention: robust design for reliable performance
Veronte Avionics Serial has x2 UART input ports and x1 RS-232 and x1 RS-485 output ports. Avionics Serial is designed to facilitate the conversion of serial ports for high-performance operations by converting UART signals to provide one RS232 and one RS485 output, or the RS-232 channel to a full duplex RS-485 channel.
