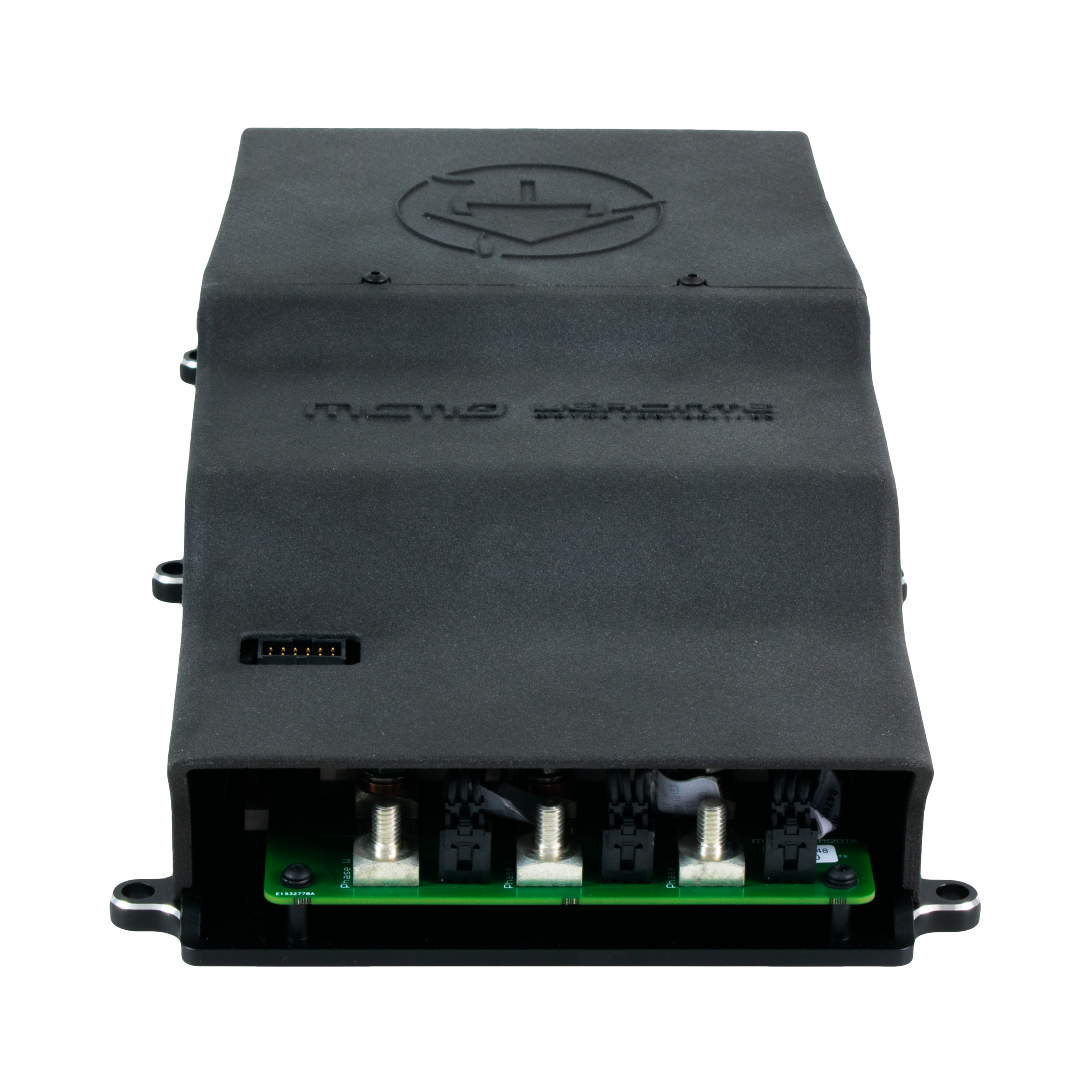

Motor Controllers MC110
Designed for eVTOL and Drones
Motor inverter for eVTOL supporting voltages up to 800V and currents up to 200A for the control of sensored and sensorless electric motors. All this in compliance with aviation standards DO178C and DO254 to ensure high safety and reliability.
65 to 800V
Up to 200A
Sensored or Sensorless
Liquid / Air Cooling
Flight Certification
eVTOL motor controller
The miniaturized MC110 inverter meets the DO airworthiness standards for eVTOL certification.
Up to 110kW & 800V
The eVTOL motor controller MC110 is designed for continuous operation at 110kW. With input voltages up to 800V, the inverter withstands sustained continuous currents up to 200A with 280A peaks, always without exceeding the 110kW power.
Advanced Control
The robust IGBT technology together with the advanced FOC algorithms make the motor controller the most precise and reliable on its range. The low level configuration options permit to adapt the inverter performance to specific needs.
Sensored or Sensorless
The motor controller MC110 is compatible with sensored and sensorless motor configurations adapting the motor control to the needs of all kinds of eVTOL aircraft. When available, sensors provide additional position information for motor control.
65 to 800V
Sensored or Sensorless
Up to 200A
Liquid / Air Cooling
Flight Certification
eVTOL motor controller
The miniaturized MC110 inverter meets the DO airworthiness standards for eVTOL certification.
Up to 110kW & 800V
The eVTOL motor controller MC110 is designed for continuous operation at 110kW. With input voltages up to 800V, the inverter withstands sustained continuous currents up to 200A with 280A peaks, always without exceeding the 110kW power.
Advanced Control
The robust IGBT technology together with the advanced FOC algorithms make the motor controller the most precise and reliable on its range. The low level configuration options permit to adapt the inverter performance to specific needs.
Sensored or Sensorless
The motor controller MC110 is compatible with sensored and sensorless motor configurations adapting the motor control to the needs of all kinds of eVTOL aircraft. When available, sensors provide additional position information for motor control.
Reliability & eVTOL Certification
MC110 adheres to DO178C / ED12, DO254 / ED80 (DAL B), and DO160 aviation standards, guaranteeing hardware and software reliability. It ensures maximum flight safety and high MTBF values providing the evidence required for eVTOL certification.
Certification Datapack
Evidence for the compliance with DO178C, DO254, and DO160 aviation standards.
Environmental Stress Screening
All units are ESS tested for the early detection of latent failures in the production line.
MTBF, ATR & COC
Design and production meets a strict process, additional documentation available.
Reliability & eVTOL Certification
MC110 adheres to DO178C / ED12, DO254 / ED80 (DAL B), and DO160 aviation standards, guaranteeing hardware and software reliability. It ensures maximum flight safety and high MTBF values providing the evidence required for eVTOL certification.
Certification Datapack
Evidence for the compliance with DO178C, DO254, and DO160 aviation standards.
Environmental Stress Screening
All units are ESS tested for the early detection of latent failures in the production line.
MTBF, ATR & COC
Design and production meets a strict process, additonal documentation available.
Enhanced ESC electronics
eVTOL motor controller withstanding voltajes up to 800V and real continuous currents up to 200A for meeting Urban Air Mobility needs.
Field Oriented Control
It utilizes Field Oriented Control (FOC) algorithms for high efficiency and stable torque. The quality microprocessor and redundant communication ensure precise speed control, all in a compact design with an optimal power-to-size ratio.
Bi-directional Control
The MC110 is capable of controlling the electric motors in two directions, making it the perfect choice for solutions requiring reversing the propeller during the operation: brake, yaw control, torque compensation, etc.
Regenerative Brake
Proven through real-world continuous operation, ensuring reliability and performance under sustained conditions the regenerative brake permits using the propellers as system brakes at the time it generates power for feeding the aircraft battery.
Enhanced ESC electronics
eVTOL motor controller withstanding voltajes up to 800V and real continuous currents up to 200A for meeting Urban Air Mobility needs.
Field Oriented Control
It utilizes Field Oriented Control (FOC) algorithms for high efficiency and stable torque. The quality microprocessor and redundant communication ensure precise speed control, all in a compact design with an optimal power-to-size ratio.
Bi-directional Control
The MC110 is capable of controlling the electric motors in two directions, making it the perfect choice for solutions requiring reversing the propeller during the operation: brake, yaw control, torque compensation, etc.
Regenerative Brake
Proven through real-world continuous operation, ensuring reliability and performance under sustained conditions the regenerative brake permits using the propellers as system brakes at the time it generates power for feeding the aircraft battery.
Air or Liquid Cooling
Liquid Cooling
For applications requiring the operation up to the power limits of the MC110, 100kW a liquid cooling setup is needed. It permits the appropriate refrigeration of the motor controller to keep the temperature values under the recommended ranges.
Air Cooling
Air cooling option is available for applications with reduced power needs. Air cooled version is designed to ensure continuous operations up to 65kW at voltages up to 800V. Once installed in an area with the appropriate airflow the included fins will provide the required heat dissipation to ensure that the motor controller refrigeration is adequate to maintain the safe levels required in an eVTOL operation.
Custom Enclosures
Custom designs based on the MC110 technology are available for both the power management board and the enclosure. Please ask our team about the custom motor controller development options, always in compliance with certification standards.
Versatile and Customizable
The eVTOL Motor Controllers offer easy optimization for various layouts including a range of I/O that can be configured for single or redundant architecture configurations. CAN Bus, RS232, RS485, PWM, etc. can be used for the control of the motor controller. Configuration options allow adjustment of ESC performance and algorithms for achieving outstanding performance.
Advanced Telemetry
The suite of sensors inside the Veronte Motor Controller MC110 provides a set of telemetry parameters that can be configured to feed the communication buses connected to the autopilot system. This configuration can also be adapted to single and redundant aircraft architectures in order to ensure the appropriate performance of the peripheral and the early failure detection.
Versatile and Customizable
The eVTOL Motor Controllers offer easy optimization for various layouts including a range of I/O that can be configured for single or redundant architecture configurations. CAN Bus, RS232, RS485, PWM, etc. can be used for the control of the motor controller. Configuration options allow adjustment of ESC performance and algorithms for achieving outstanding performance.
Advanced Telemetry
The suite of sensors inside the Veronte Motor Controller MC110 provides a set of telemetry parameters that can be configured to feed the communication buses connected to the autopilot system. This configuration can also be adapted to single and redundant aircraft architectures in order to ensure the appropriate performance of the peripheral and the early failure detection.
Specifications
Max continuous power | 110kW |
Input voltage range | 65 – 800V |
Max current* | 200A (continuous) | 280A (5s peak) |
Redundant control | Yes |
Control customization | Motor parameters | FOC Parameters | Open loop/Close loop start up |
Advanced setup | Fault detection limits | Switching frequency | Regenerative mode |
Comunications | 1x Isolated CAN FD Bus | 1x Isolated CAN 2.0 Bus | 1x OPTO PWM | RS232 | RS485 | USB |
Telemetry | Motor & ESC temperature | Control variables | RPM | Input voltage | In/Out current |
Motor control | Sensorless or sensored (Digital incremental encoder | Analog SIN/COS) |
Aircraft certification | DO178C Software | DO254 Hardware | DAL B | DO160 |
Cooling | Water cooling |
Fault detection | Input/Output over-current | Input under/over-voltage | Over-temperature |
Additional features | Reversal operation | Battery disconnection | In-rush current limitation |
Safeguard | Current imbalance | Short-circuit | Ground fault |
Price
MC110 2.0 | 4500€ |
